Create a Custom Navigation Menu in WordPress Without Using Plugins

No matter what WordPress theme you are using it will almost certainly provide at least one menu location where you can display your menu (normally in your website header). The menus can be easily created from inside the admin area and quickly added to these pre-set location(s). But what do you do if you need another menu to display elsewhere on your website? In this tutorial we’re going to look at how you can create your own navigation menu that can be displayed in a location of your choice without having to use a plugin.

Let’s get going!

Register Your New Custom Menu Location

The first thing we need to do is to register your new custom menu’s location. To do this, open your active theme’s functions.php file with your text editor of choice (like Sublime) and add the following code:

function my_custom_menu() {
    register_nav_menu('my-custom-menu',__( 'My Custom Menu' ));
}
add_action( 'init', 'my_custom_menu' );

In this piece of code we#’ve used the add_action() hook to add a callback function my_custom_menu(). This means that the my_custom_menu() function will be executed along with the default core functions that are executed every time the init action is called. The “My Custom Menu” string is the readable version that you will see in the admin page.

Inside the function, the core function register_nav_menu is used in order to register a navigation menu location for our theme. In case you want to register multiple menus you can use the register_nav_menus() and define the menu locations inside an array like this:

function my_custom_menu() {
    register_nav_menus(
        array(
            'my-custom-menu' => _( 'My Custom Menu' ),
            'my-custom-menu-2' =>_('My Second Custom Menu')
        )
    );
}
add_action( 'init', 'my_custom_menu' );

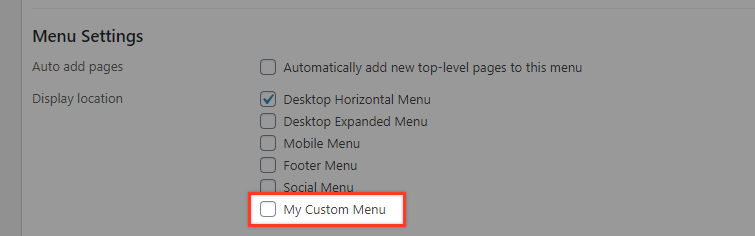

To confirm the results, go to your admin area under Appearance >Menus. You will notice that your custom menu location is included in the Menu Settings.

Note: If we select this location at this point, the menu will not display anything at all at the frontend.

How to Display Our Custom Menu

Let’s say that we want the new menu location to be used for a secondary horizontal menu that will be located below the “Desktop Horizontal Menu” that’s already present in our theme.

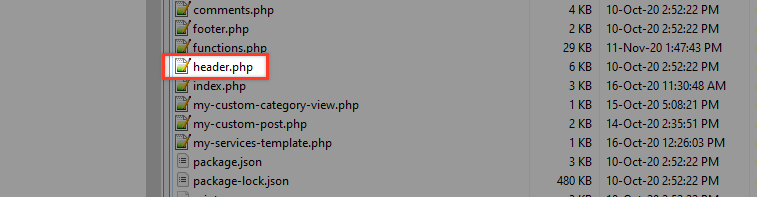

To achieve this we will insert some code in the theme’s template where we want the menu to be displayed. In this example we use the Twenty Twenty theme and edit its header.php file to display our menu. You will find this file under the theme’s folder.

Open the header.php file with your editor and find this element in the code around line 33.

<header id="site-header" class="header-footer-group" role="banner">

Right below this section we will put our code to display our new custom menu location: ‘my-custom-menu’.

<header id="site-header" class="header-footer-group" role="banner">
<?php
    wp_nav_menu(
        array(
            'theme_location' => 'my-custom-menu'
        )
    );
?>

The theme_location value must be identical to the name you provided for your menu in the functions.php code we pasted before. In our case: ‘my-custom-menu’.

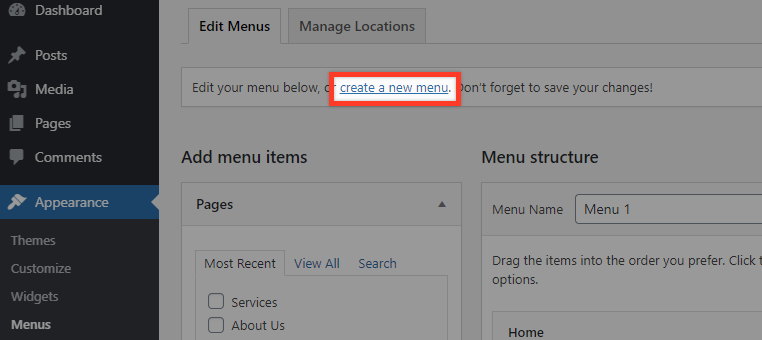

Now let’s create a test menu to see if this is working. To do this go to Appearance >Menus and start creating a new menu.

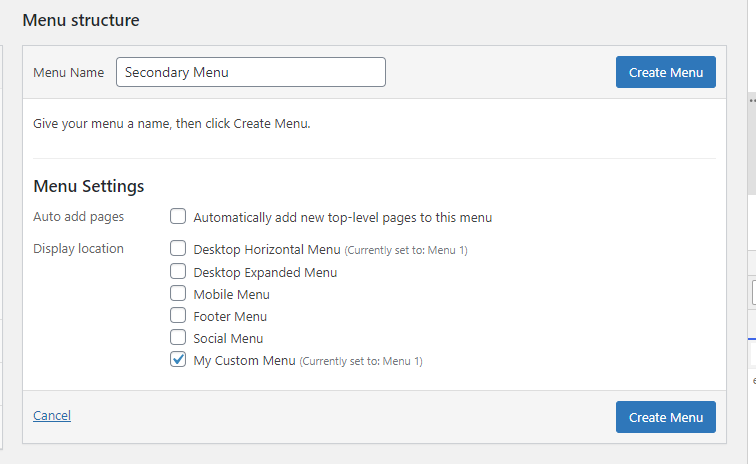

Give the menu the title “Secondary Menu”, select “My Custom Menu” for a location and then hit the “Create Menu” button.

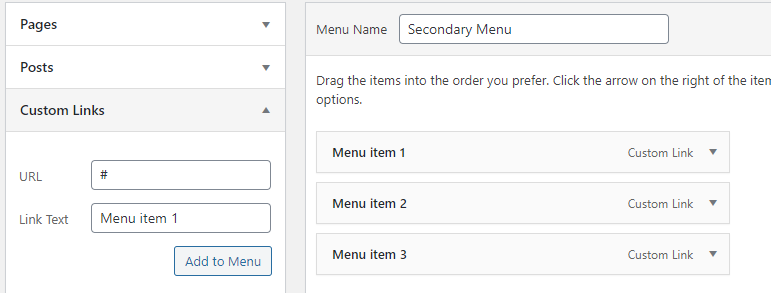

Finally add some items to the menu (for example Menu item 1, Menu item 2, Menu item 3) and then save the menu.

Let’s see what we have now in the frontend.

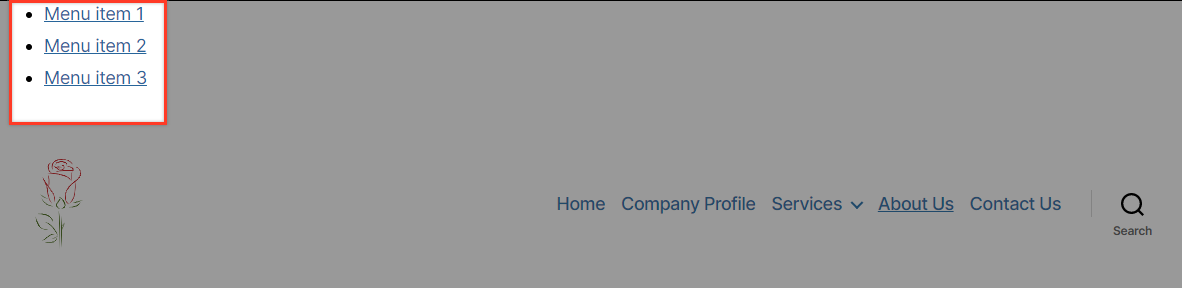

We’ve managed to show our new menu, but it is quite messy, isn’t it?

If we view our source code we will notice that the wp_nav_menu() function created this HTML piece of code

<div class="menu-secondary-menu-container">
    <ul id="menu-secondary-menu" class="menu">
        <li id="menu-item-378" class="menu-item menu-item-type-custom menu-item-object-custom menu-item-378"><a href="#">Menu item 1</a></li>
        <li id="menu-item-381" class="menu-item menu-item-type-custom menu-item-object-custom menu-item-381"><a href="#">Menu item 2</a></li>
        <li id="menu-item-382" class="menu-item menu-item-type-custom menu-item-object-custom menu-item-382"><a href="#">Menu item 3</a></li>
    </ul>
</div>

So, we can use the classes described in the code to beautify our menu. To do this we’ll use some CSS. Find style.css (this is normally in the same location as the header.php file) and then open it with your editor to add this code:

ul#menu-secondary-menu {
    text-align: right;
    padding: 10px 30px;
}
ul#menu-secondary-menu li {
    list-style: none;
    display: inline-block;
    padding: 1px;
}
ul#menu-secondary-menu li:hover {
    border: 1px solid #c00202;
    padding: 0;
    border-radius: 3px;
}
ul#menu-secondary-menu li a {
    text-decoration: none;
    padding: 5px;
    font-size: 14px;
}

The result will be much neater now and much more in keeping with the style of our demo website.

Additional Menu Customization

The wp_nav_menu() function that WordPress provides for displaying menus comes with a range of options that allow you to customize it further.

‘theme_location‘

As we described above, this parameter corresponds to the keys passed to the register_nav_menus() function in functions.php

wp_nav_menu(
    array(
        'theme_location' => 'my-custom-menu'
    )
);

‘menu_class’

There is the ‘menu_class‘ option that allows you to specify your own class for the menu.

wp_nav_menu(
    array(
        'theme_location' => 'my-custom-menu',
        'menu_class' => 'my-custom-menu'
    )
);

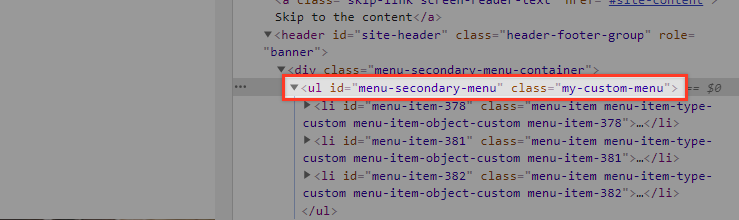

As you may have already noticed the class does not replace any other class but is added in the ul element instead.

‘menu_id’

Unlike the class option, the menu_id option replaces the current menu id. The generated HTML for the <ul> element will be something like this.

<ul id="menu-secondary-menu" class="menu">

When this option is not used, the id will be the menu slug, which will be incremented when using multiple instances.

‘container’

This parameter define the type of element that surrounds the menu. The default is ‘div’. If for example you use this code:

wp_nav_menu(
    array(
        'theme_location' => 'my-custom-menu',
        'container' => 'nav',
    )
);

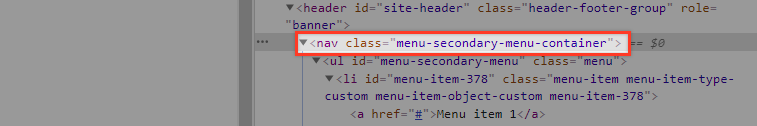

you will get this result:

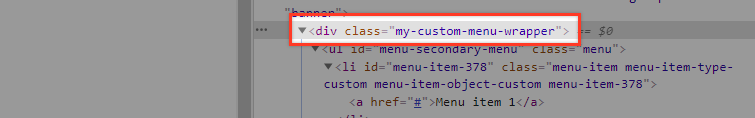

‘container_class’

This is a class that is applied to the menu parent element:

wp_nav_menu(
    array(
        'theme_location' => 'my-custom-menu',
        'container_class' => 'my-custom-menu-wrapper',
    )
);

You can also insert content before or after each menu item link by using the ‘before’ and ‘after’ parameters. This is very useful if you want to prepend a dash or icon or wrap the menu items in a span tag. You can try the example below yourself to see this in action:

wp_nav_menu(
    array(
        'theme_location' => 'my-custom-menu',
        'before'          => '<span class="menulink">',
        'after'          => '</span>',
    )
);

wp_nav_menu(
    array(
        'theme_location' => 'my-custom-menu',
        'before'          => '-',
    )
);

wp_nav_menu(
    array(
        'theme_location' => 'my-custom-menu',
        'before'          => '-',
    )
);

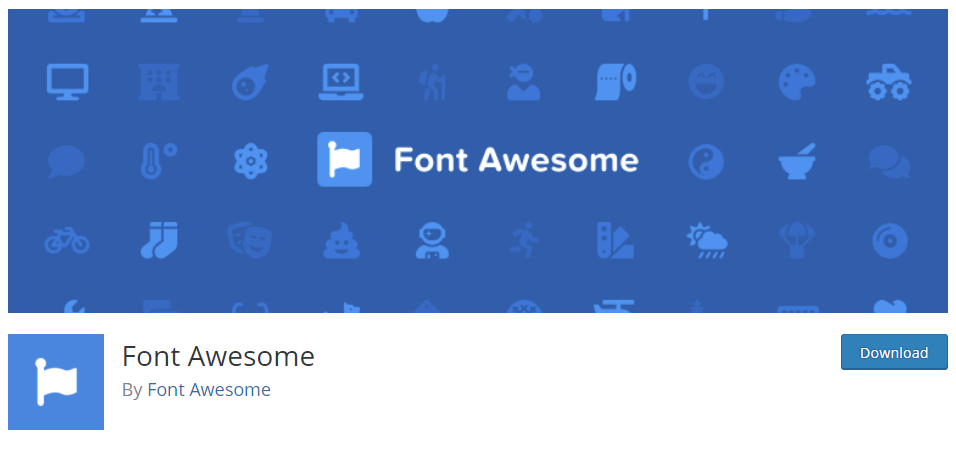

You can also add icons to the menu items. Try for example installing the Font Awesome plugin to include their icon library and use the ‘before’ menu option to apply a font-awesome icon to the menu items.

wp_nav_menu(
    array(
        'theme_location' => 'my-custom-menu',
        'before'          => '<i class="fas fa-caret-right"></i>',
    )
);

You can find the code for each icon in the plugin’s icon list.

The Walker Parameter

Last but not least, we will provide an example of how the walker parameter helps customize menus. If you don’t know what the WordPress walker class is then the following probably won;t make much sense. We’d suggest reading ‘Getting Familiar with the WordPress Walker Class‘ first.

wp_nav_menu(
    array(
        'walker' => new Walker_Custom_Menu
    )
);

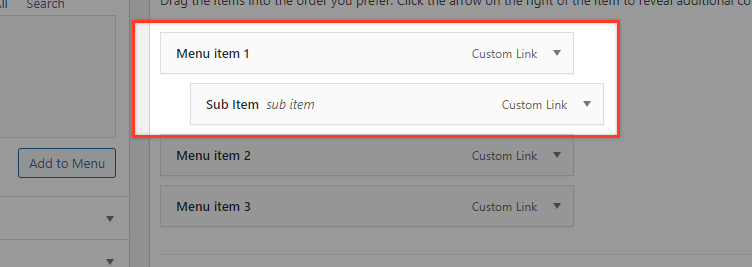

To demonstrate the Walker class, we will add a “Sub item” on our menu.

We will override the default Walker Class that WordPress provides. This is located in the wp-includes/class-walker-nav-menu.php file. To achieve that go to your function.php file and insert the code below:

if ( !class_exists('My_Nav_Menu_Walker') ) {
    class My_Nav_Menu_Walker extends Walker {
        var $tree_type = array( 'post_type', 'taxonomy', 'custom' );
        var $db_fields = array( 'parent' => 'menu_item_parent', 'id' => 'db_id' );

        function start_lvl(&$output, $depth) {
            $indent = str_repeat("\t", $depth);
            $output .= "\n$indent";
            $output .= "<i class=\"dropdown icon\"></i>\n";
            $output .= "<div class=\"menu\">\n";
        }

        function end_lvl(&$output, $depth) {
            $indent = str_repeat("\t", $depth);
            $output .= "$indent</div>\n";
        }

        function start_el(&$output, $item, $depth, $args) {
            $value = '';
            $classes = empty( $item->classes ) ? array() : (array) $item->classes;
            $classes = in_array( 'current-menu-item', $classes ) ? array( 'current-menu-item' ) : array();
            $class_names = join( ' ', apply_filters( 'nav_menu_css_class', array_filter( $classes ), $item, $args ) );
            $class_names = strlen( trim( $class_names ) ) > 0 ? ' class="' . esc_attr( $class_names ) . '"' : '';
            $id = apply_filters( 'nav_menu_item_id', '', $item, $args );
            $id = strlen( $id ) ? ' id="' . esc_attr( $id ) . '"' : '';
            $attributes  = ! empty( $item->attr_title ) ? ' title="'  . esc_attr( $item->attr_title ) .'"' : '';
            $attributes .= ! empty( $item->target )     ? ' target="' . esc_attr( $item->target     ) .'"' : '';
            $attributes .= ! empty( $item->xfn )        ? ' rel="'    . esc_attr( $item->xfn        ) .'"' : '';
            $attributes .= ! empty( $item->url )        ? ' href="'   . esc_attr( $item->url        ) .'"' : '';
            $item_output = $args->before;
            $item_output .= '<a'. $attributes . $id . $value . $class_names . '>';
            $item_output .= '<div class="item">';
            $item_output .= $args->link_before . apply_filters( 'the_title', $item->title, $item->ID ) . $args->link_after;
            $item_output .= '</div>';
            $item_output .= "</a>\n";
            $item_output .= $args->after;
            $output .= apply_filters( 'walker_nav_menu_start_el', $item_output, $item, $depth, $args );
        }
    }
}

Now in your headers.php replace your menu code with this one (we will output both menu versions on purpose just to compare the results):

wp_nav_menu(); // Default 'walker' => new Walker_Nav_Menu()
wp_nav_menu(
    array(
        'walker' => new My_Nav_Menu_Walker()
    )
);

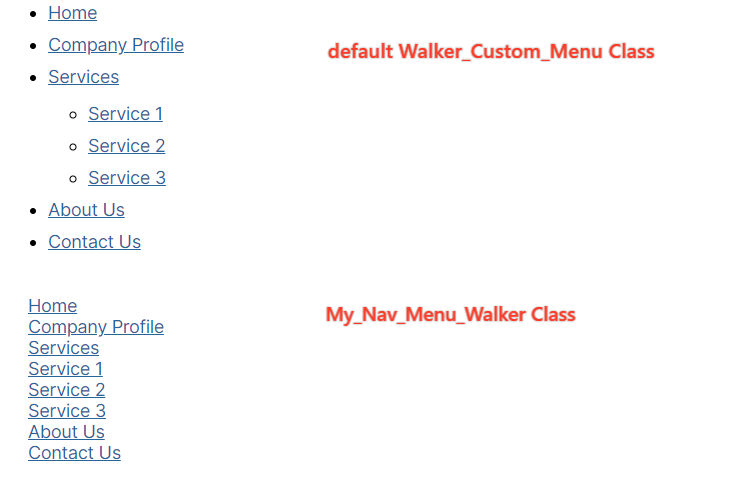

Comparing this code with the original Walker_Nav_Menu Class you will notice that $tree_type and $db_fields remained untouched but the rest are changed. Take your time and compare both code and HTML outputs on these two versions of the same menu and try to experiment yourself by playing around with My_Nav_Menu_Walker Class.

If you are interested in taking your custom plugin to the next level, we highly recommend that you study our extensive series on how to create a WordPress plugin with object-oriented programming.
In these articles, we have tutorialized the techniques that will improve your plugin’s reusability and extensiveness, as well as security and scalability. Don’t miss out on this valuable resource!

Conclusion

Menus on websites are clearly pretty important! Being able to have full control over the placement and output of menus extends your capabilities as a theme developer and opens up a range of exciting new possibilities when designing websites without having to rely on plugins which is always great to be able to do.
